CT Accuracy Class Explained: What It Means and Why Getting It Wrong Costs Real Money

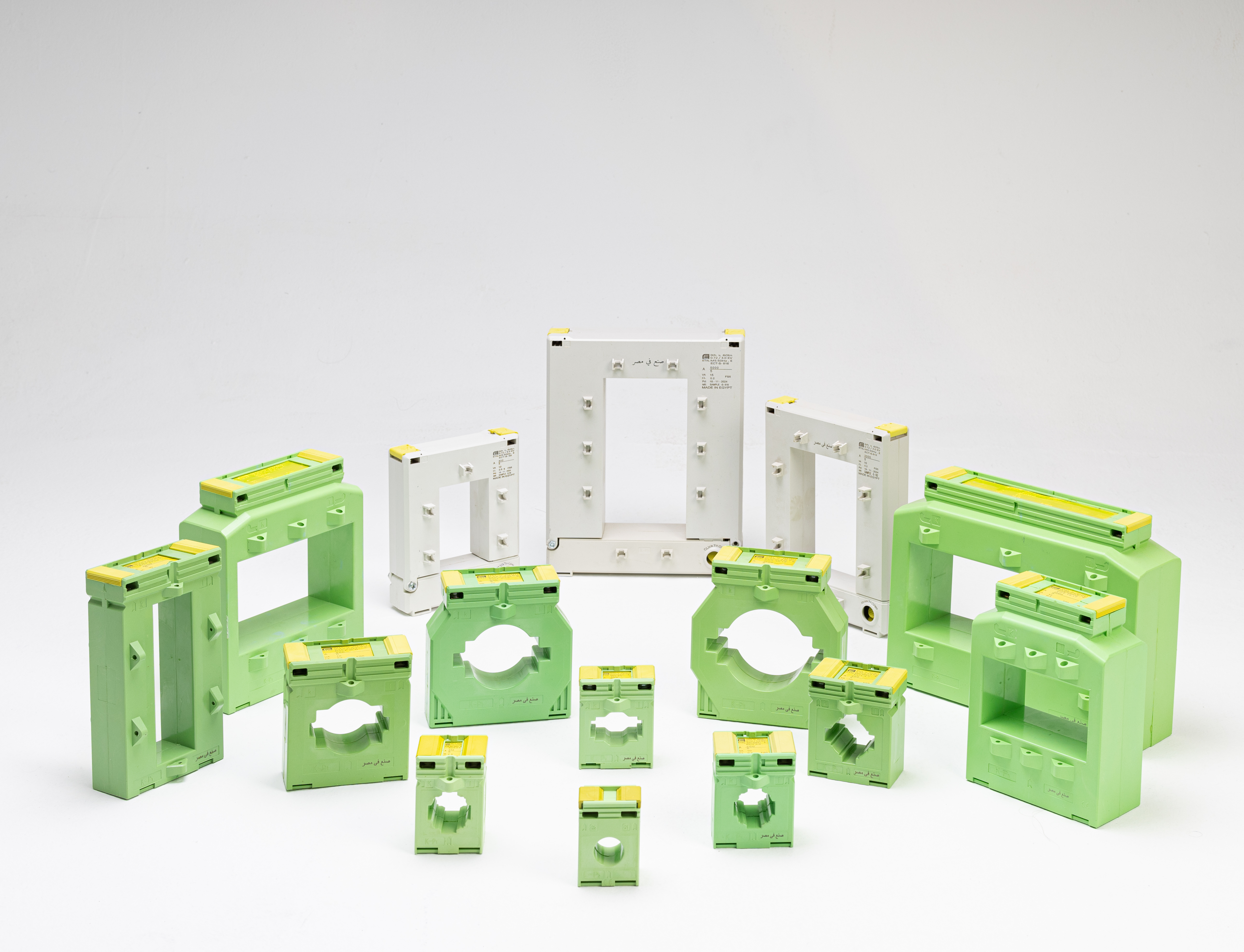

Introduction Accuracy class is one of the least understood parameters in current transformer specification — and one of the most expensive to get wrong. Most engineers know that a lower accuracy class number means a more accurate CT. What fewer engineers and procurement managers think through is what that accuracy error actually represents in financial terms, over a year of continuous operation, on a large industrial feeder. This article explains accuracy class clearly, walks through a real-world cost calculation, and gives a straightforward framework for specifying the right class for each application.

What Accuracy Class Actually Means The accuracy class of a current transformer defines the maximum permissible ratio error under rated conditions — expressed as a percentage of the true primary current. Accuracy ClassMax Ratio ErrorMax Phase Displacement0.2±0.2%±10 minutes0.2S±0.2%±10 minutes (extended range)0.5±0.5%±30 minutes0.5S±0.5%±30 minutes (extended range)1±1.0%±60 minutes3±3.0%Not specified5±5.0%Not specified Source: IEC 61869-2 The "S" designation (0.2S, 0.5S) indicates extended accuracy range — these CTs maintain their stated accuracy class down to 1% of rated current, compared to 5% for standard classes. For installations with highly variable loads, S-class CTs provide accurate measurement across a much wider operating range. Phase displacement is equally important for power measurement. A CT with significant phase error will cause a power meter to read the wrong power factor — which directly affects active and reactive power calculations. In systems where power factor correction or reactive energy billing is involved, phase error in the CT is a real financial concern.

The Cost of One Wrong Accuracy Class Decision Let's put numbers to it. This is not hypothetical. Scenario: Industrial facility. Main incomer feeder at 400A nominal load. Power: 400A × 400V × √3 × 0.85 PF = approximately 235 kW Annual energy consumption: 235 kW × 8,000 hours = 1,880 MWh/year Energy tariff: approximately EGP 1.50 per kWh (commercial rate, Egyptian grid) Metering CT: Class 1 instead of Class 0.5 Maximum additional error introduced: 0.5% (the difference between the two classes) Annual energy measurement error: 1,880 MWh × 0.5% = 9.4 MWh Financial value of that error: 9.4 MWh × EGP 1,500/MWh = EGP 14,100 per year And this is the maximum permitted error — not an unusual failure. This is within specification for a Class 1 CT operating normally. Over a 10-year installation lifetime: EGP 141,000 — on a single feeder. The price difference between a Class 1 CT and a Class 0.5 CT for the same current rating is negligible compared to that figure. The cost of specifying down to save on the instrument transformer is almost always false economy.

Accuracy Class by Application: The Right Specification Every Time Revenue and tariff billing meters Minimum requirement: Class 0.5 Recommended: Class 0.2 or 0.2S Any CT feeding a meter used for billing — whether utility-to-customer or internal cost allocation between departments or tenants — must be Class 0.5 or better. This is not only a technical recommendation; in many jurisdictions it is a legal requirement for trade metering. For high-value feeders (large industrial consumers, main incomers) where annual energy throughput is significant, Class 0.2 is a small additional cost against the measurement accuracy it provides. Power quality analyzers and energy management systems Minimum requirement: Class 0.5 Energy management systems that track consumption for efficiency programs, ISO 50001 compliance, or internal optimization must have accurate input data. A Class 1 CT feeding a power quality analyzer means the baseline data for your energy reduction program is potentially 1% wrong in either direction — undermining the credibility of any efficiency gains you claim. Protection relays (overcurrent, earth fault, differential) Protection applications use a different class designation: Class P (protection), not the metering classes described above. Common protection classes: 5P, 10P. The number indicates the maximum composite error at the accuracy limit factor (ALF). Metering CTs (Class 0.5, 1, etc.) should not be used for protection applications and protection CTs (Class 5P, 10P) should not be used for revenue metering. They are designed for different operating ranges and different performance criteria. Using a metering CT for protection is dangerous: metering CTs saturate under fault conditions (by design, to protect the meters), which means the protection relay may not see the fault current correctly. Indication and dashboard displays Acceptable: Class 1 or Class 3 Ammeters showing panel current for operator awareness, non-billing dashboard displays, and approximate load monitoring do not require high-accuracy CTs. Class 1 is adequate and Class 3 is acceptable for rough indication.

The Burden Connection to Accuracy Accuracy class is only maintained when the CT is operating within its rated burden. This bears repeating because it is the most common source of in-service accuracy degradation: A Class 0.5 CT operating above its rated burden performs worse than a Class 1 CT within its rated burden. If you specify a Class 0.5, 5VA CT and connect 8VA of load to it, you have a CT that will not maintain Class 0.5 performance — regardless of what the nameplate says. The accuracy class on the label is a guarantee only when the burden conditions are met. Calculate your total connected burden before specifying — and build in a safety margin. This is covered in detail in our guide to [CT selection for LV applications].

A Note on Extended Range (S-Class) CTs Standard accuracy classes (0.5, 1) are guaranteed accurate from 5% to 120% of rated current. Below 5%, accuracy may degrade significantly. For installations where the load varies widely — a feeder that runs at 10% of nominal capacity at night and 80% during the day — a standard Class 0.5 CT may deliver poor accuracy during the low-load periods, even if it performs perfectly at full load. 0.5S and 0.2S CTs maintain their stated accuracy from 1% to 120% of rated current. For variable-load applications, specifying an S-class CT is a modest additional cost for substantially better measurement across the full operating range.

Summary: Accuracy Class Decision Framework ApplicationMinimum ClassNotesUtility / tariff billing0.5Legal requirement in many jurisdictionsHigh-value revenue metering0.2 or 0.2SCost justified by measurement accuracyEnergy management / ISO 500010.5 or 0.5SS-class for variable loadsPower quality analysis0.5Phase error matters for PF measurementPanel indication (non-billing)1 or 3No financial consequence to accuracy errorOvercurrent protection5P or 10PDifferent standard — not a metering classDifferential protectionClass PS or PXSpecialized protection class — consult relay manufacturer

Conclusion Accuracy class is a purchasing decision with financial consequences that play out over years of operation. The one-time cost of specifying a Class 0.5 CT instead of Class 1 is small. The cumulative value of accurate measurement on a high-consumption feeder is not. Specify the accuracy class the application genuinely requires. Don't downgrade to save a marginal cost on the instrument transformer.
