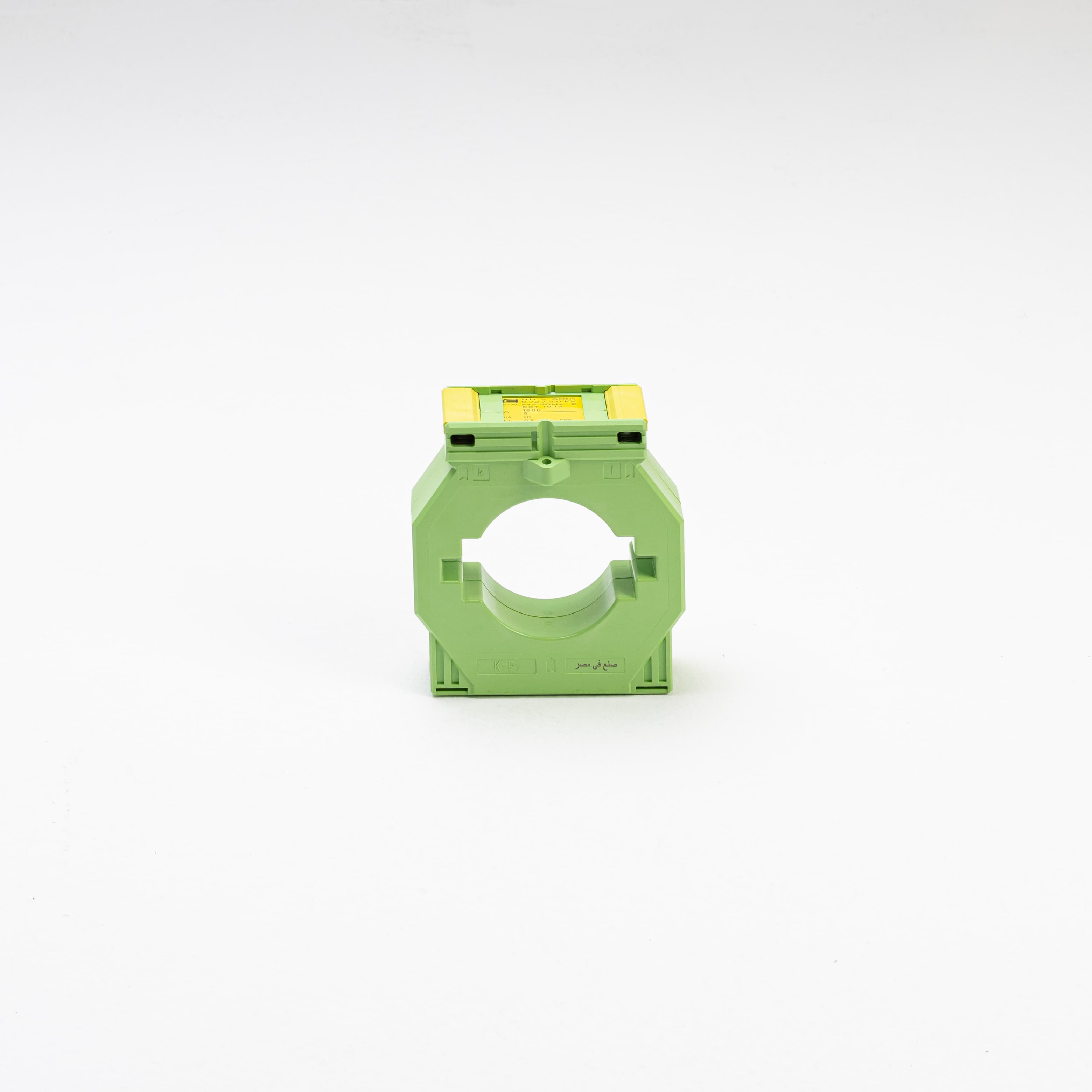

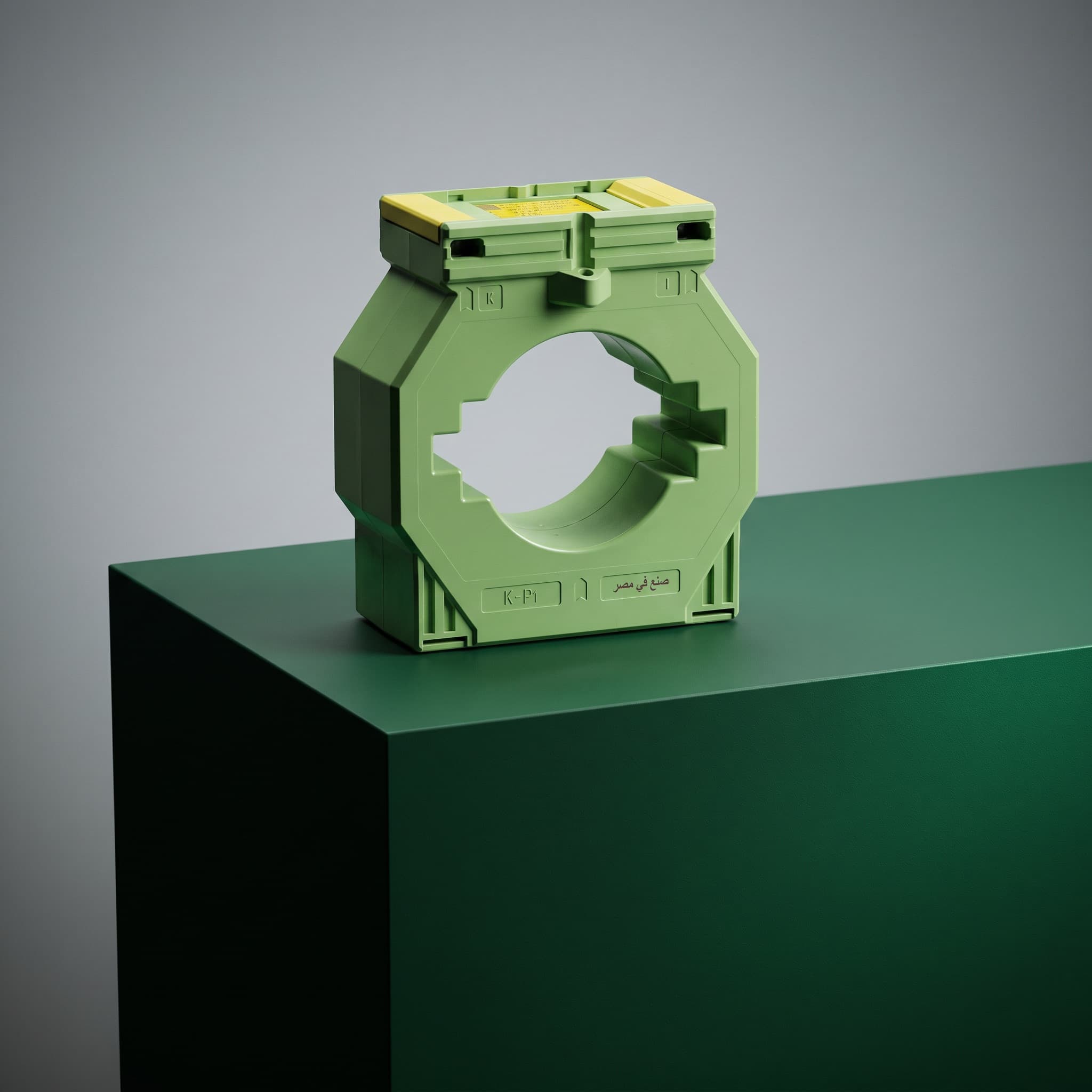

ECT-10.13 Current Transformer

ECT-10.13 Current Transformer

ECT-10.13 current transformer for 200–3200A primary current, accuracy classes 0.2 to 1, 127mm outer width, large busbar window. The ECT-10.13 handles primary currents from 200 A to 3200 A in a 127 mm outer width housing, accepting a 100×10 mm bar or a single 80×10 mm bar, plus a 79 mm round conductor. With burden ratings from 1 VA to 30 VA across all three accuracy classes, it's suited to high-current switchgear applications — main breaker metering, generator and transformer protection, and busbar systems carrying heavy feeder loads.
